Factory Lead Time

9 Weeks

Mounting Type

PCB, Surface Mount

Package / Case

10-SMD Module

Number of Pins

10

Weight

1.7g

Voltage - Input (Nom)

12V

Power - Output (Max)

5.5W

Power Dissipation (Max)

3W

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

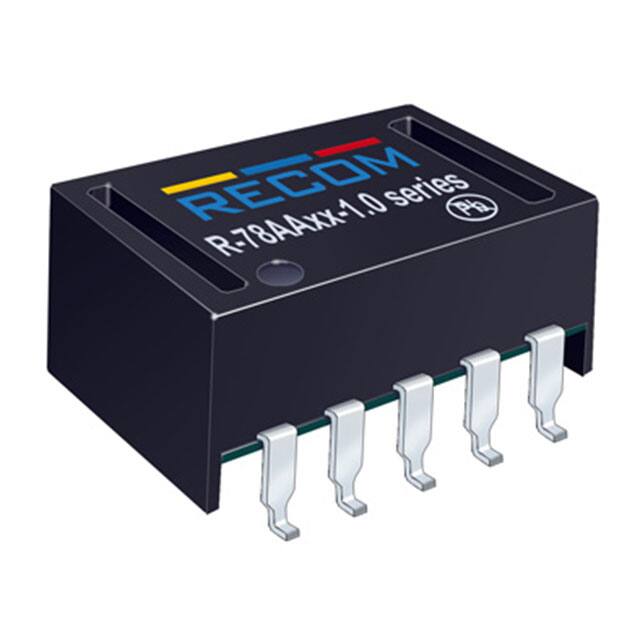

INNOLINE R-78AA-1.0

Size / Dimension

0.60Lx0.38W x 0.35 H 15.2mmx9.7mmx8.8mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

10

ECCN Code

EAR99

Type

Linear Regulator Replacement

Applications

ITE (Commercial)

Power Rating

5W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

15.3mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

90%

Voltage - Input (Min)

4.75V

Trim/Adjustable Output

YES

Current - Output (Max)

1A

Current - Output

1A

Output Power

3.3W

Control Features

Enable, Active High

Max Output Voltage

5.5V

Voltage - Output

3.3V

Current - Output 1

1A

Nominal Input Voltage

12V

Min Output Voltage

3V

Isolation

Isolated

Isolation Voltage

6kV

Max Input Voltage (DC)

18V

Min Input Voltage (DC)

4.75V

Features

Remote On/Off, OTP, SCP

Height

8.8mm

Width

9.4mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
